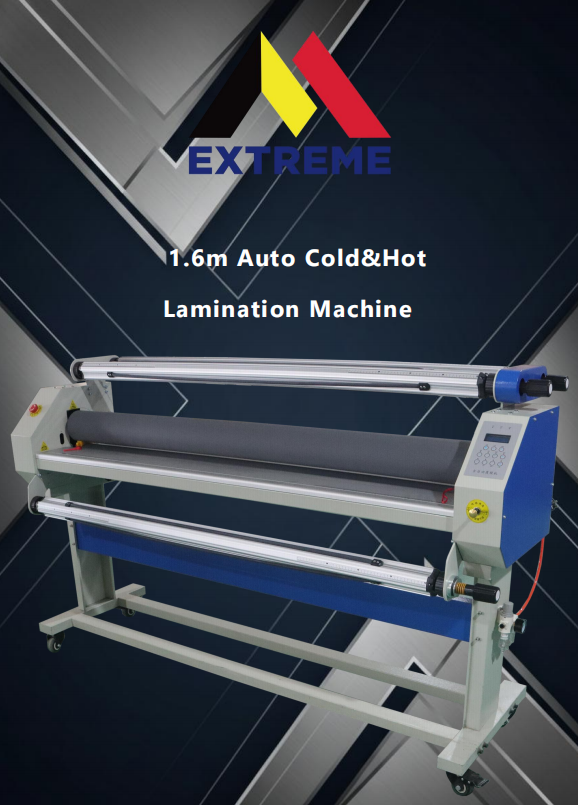

1.6m Auto Cold & Hot Lamination Machine

1600mm, max thickness: 28mm, max speed: 10m/min, silicone rubber roller
The Laminating Machine 1600mm hot features infrared internal heating,
reaching working temperature in 5-10 minutes.
With 1600mm laminating width and 10m/min speed,
it is ideal for large-format materials.
Quantity:
Contact Now
add to cart
1.6m Auto Cold & Hot Lamination Machine
型号 Model
Laminating Machine 1600mm hot
印板种类 PlateType
覆膜机 Laminator
升降方式 Lifting Method气缸 Cylinder
电压 Voltage220V
最大覆膜宽度 Maximum Lamination Width1600mm
加热方式 Heating Method红外内部加热 Infared Internal Heating
最大薄膜厚度 Maximum Film Thickness28mm
加热时间 Heating Time5-10 分钟 5-10min
外形尺寸 Dimensions1970x1170x600mm
最大覆膜速度 Maximum Lamination Speed10 米/分钟 10m/min
功率 Power0.8–1.0 kW/h
温度设定 Temperature Setting室温–70°C Room–70°C
胶辊材质 Rubber Roller Material硅胶 Silicone
硅胶辊 Silicone Rubber Roller1–120mm
铝杆配置 Aluminum Rods 标配 4 根 2–4 aluminum rods as standard
覆膜速度 Laminating Speed10 米/分钟 10 meters per minute
最大放卷宽度 Maximum Unwind Width280mm
最大收卷宽度 Maximum Rewind Width215mm
调速方式 Speed Regulation蓝屏按键调节 Blue-screen buttons
工作环境 / Operating Environment
温度 Temperature: 5°C – 35°C
湿度 Relative Humidity: 30% – 70%
介质 mediaLaminating Film
应用场景 ApplicationScenarios
覆膜机用于保护印刷品、照片、文件等，防水防污、增强耐用性,
广泛应用于广告、办公、包装等行业。
Laminating machines protect prints, photos, and documents
by providing waterproofing, stain resistance, and durability
—widely used in advertising, office, and packaging industries.
机器尺寸/净重 Machine dimensions/ Net weight197*60*117cm 180kg
包装尺寸/毛重 Packaging dimensions/Gross weight215*80*72cm 220kg

FAQS
1：How soon do you ship after ordering?
After successful payment, your order will be processed and shipped within 1–5 working days (excluding pre-order items).
Orders placed on weekends and public holidays will be processed on the next working day.

2：Why does shipping sometimes get delayed?
In case of uncontrollable factors such as major promotions, extreme weather or customs inspections, there may be slight delays.
We will notify you by email or SMS as soon as possible and arrange shipment promptly.

3：What payment methods are accepted?
You can pay in US dollars to our Alibaba ACP account.
If you prefer to pay in your local currency, we have local XT accounts in the following countries, and you can make the payment
to the corresponding local XT account.

4：How to contact us？
Email: xuzhi@kxextreme.com
Tel: +86 13437185640
Support service hours: 9:00–18:00 (Beijing Time) on working days.We will reply to you within 24 hours.

5：Can I get a sample? Is it free or charged?
Yes， you may get sample for free.

6:What should I do if the goods are damaged or missing?
The packaging of the goods we send is sturdy and durable, and the goods you receive will be in good condition.

7:Can we visit your factory?
Yes, welcome to our factory.

8:Do you have products in stock?
Enough stock for you

9:Can you mix different models in one order?
Yes,  we can mix them in one order.

10:How to contact your after-sales service?
Contact our technician directly by call or whatsapp
Mr.sun(After-sales support)
Mobile :+8615071058405
E-mail：aokxtechnicalsu@kxextreme.com
