EXTREME

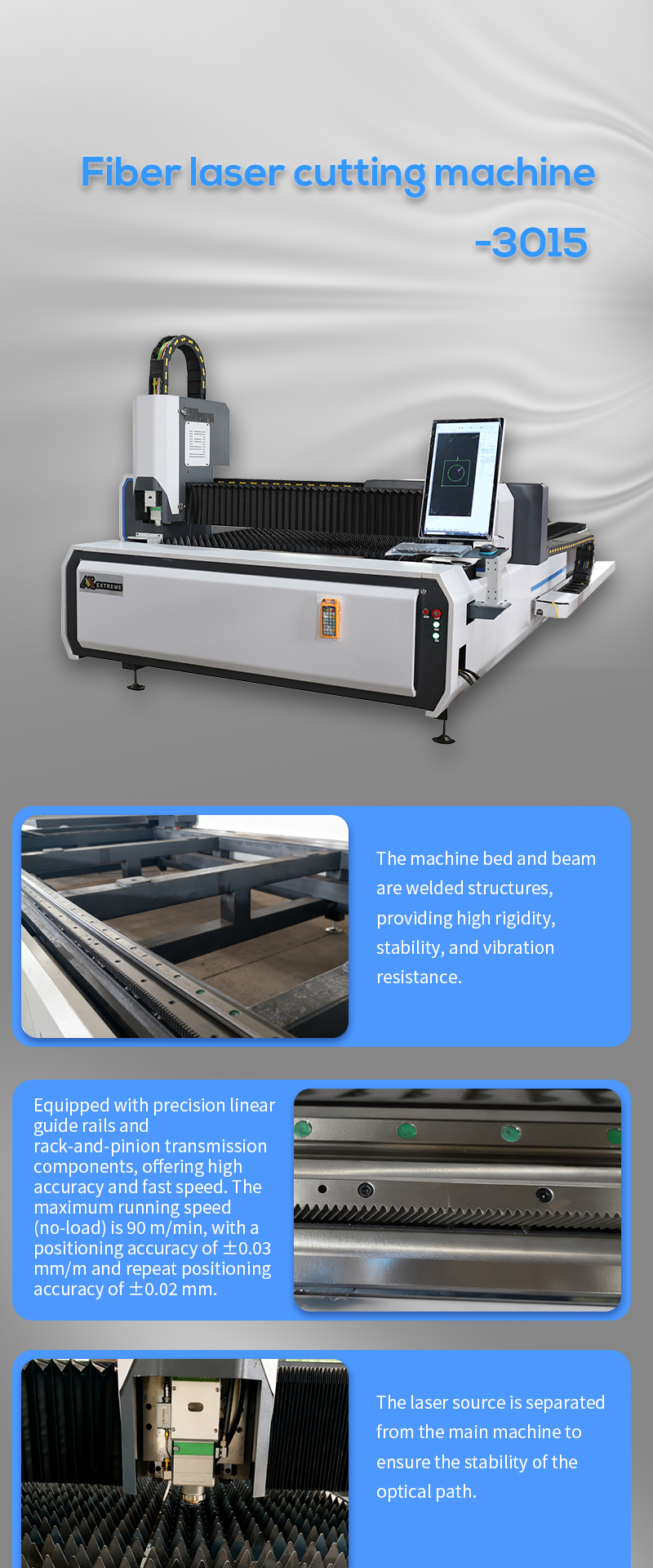

Fiber laser cutting machine 3015 - 2000w/3000w/6000wLaser Power,Sawtooth-table,Hanli industrial water chiller 3000,
Professional selling Hot Fiber Metal Laser Cutting Machine For Metal Plates And Tubes
|
Model
|
Fiber laser cutting
machine
|
|
Working
Area
|
3000*1500mm
|
|
Laser
Power
|
2000w/3000w/6000w |
|
Laser
Generator
|
Max
|
|
Laser Wave
Length
|
1064nm
|
|
Working

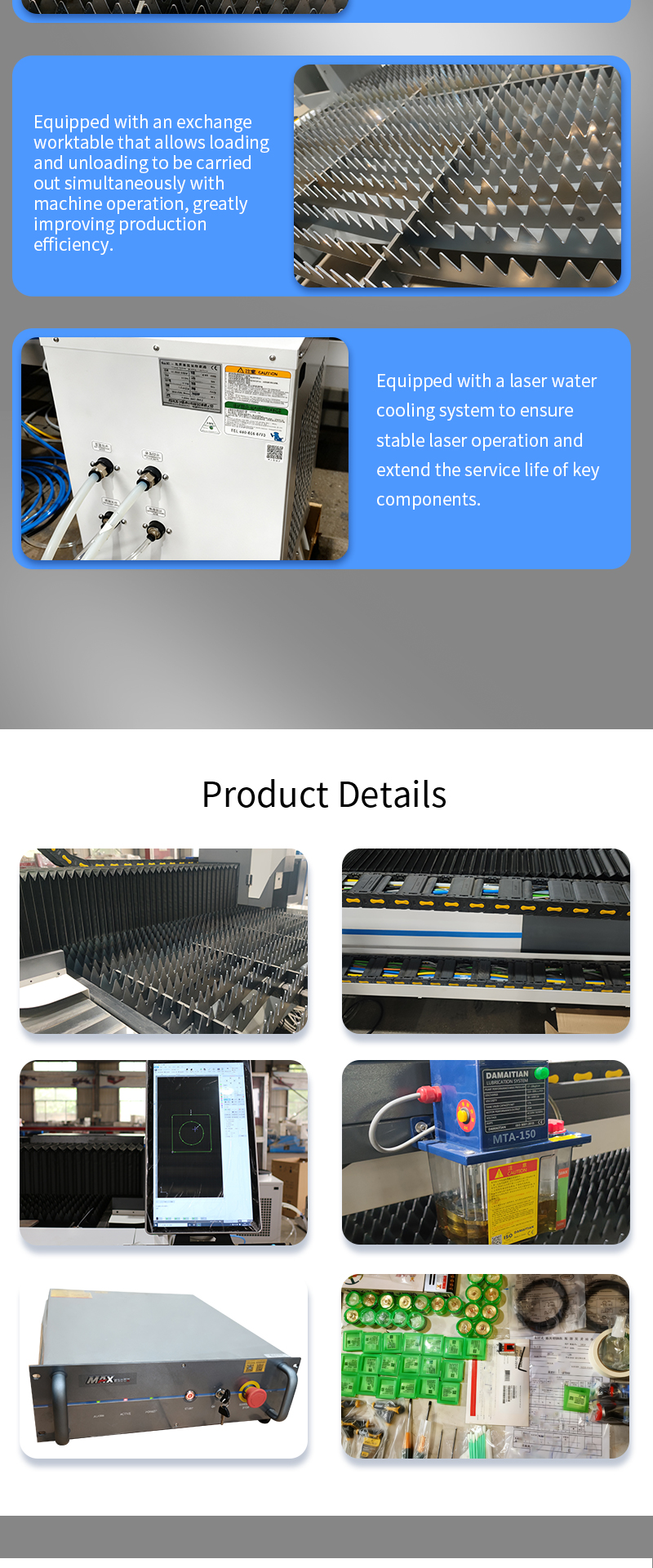

Table
|
Sawtooth-table
|
|
Maximum Idle
Running Speed
|
140m/min
|
|
Maximum
acceleration
|
1.5G
|
|
Position
Accuracy
|
±0.02mm/m
|
|
Repeat
Positional Accuracy
|
± 0.01mm
|
|
Cutting
Thickness
|
Check the
following specification table
date
|
|
Control System
|
PC control
with CYPCUT
|
|
Motor
|
Japan
Fuji
servo motor
and driver
|
|
Reducer
|
Japan SHIMPO |
|
Position
Type
|
red dot
|
|
Laser working
lifetime
|
100000 working hours
|
|
Working
Voltage
|
380V ±10 % 50/60Hz
|
|
Auxiliary
Gas
|
oxygen, nitrogen,
air
|
|
Working life
of fiber module
|
More than 100000 hours
|
|
Fiber laser
cutting head
|
Raytools
|
|
Cooling System
|
Hanli Industrial Water Chiller 3000
|
|
Work
Environment
|
0-45°C, Moisture 45-85%
|
|
Delivery
time
|
25working days
|
